Equipment:

StarFire Digital Firing System Controller

  • Total 8 Communications Channels Available
  • 2 Communications Channel standard
  • Smart Continuity
  • Manual Firing Mode
  • Sequence Firing Mode
  • Sync Multiple Controllers on Large Displays
  • Firing Software Included
  • 1/100 of a Second Timing Accuracy
  • Unlimited Simultaneous Firing of Cues
  • Unlimited Firing of Cues 1/100 of a Second Apart
  • Up to 255 Modules per Controller
  • Compatible only with StarFire Modules

Description of Controller Components and Connections

Complete Digital Firing System
Package Deals now Available


ACEPyro.com Shop Now
StarFire Control Panel

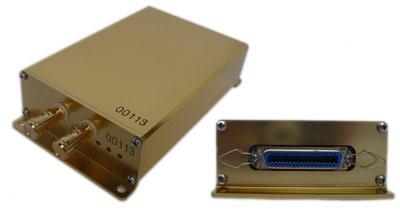

StarFire Digital Firing System Modules

  • 32 cues per module
  • Uses 22 gauge "Shoot Wire" to Connect all of the Modules to the Controller
  • Compatible only with StarFire Control Panel


Complete Digital Firing System
Package Deals now Available


ACEPyro.com Shop Now
Firing System Modules

StarBridge Logo

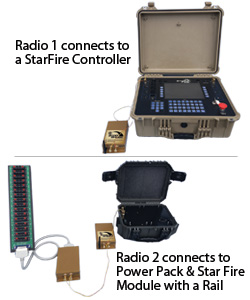

StarBridge Wireless System

StarBridge is a new enhancement to StarFire to provide wireless connectivity between your controller and your modules. The StarBridge Kit includes two StarBridge Radios and one StarBridge Power Pack. Your existing StarFire equipment will be compatible with StarBridge once software updates have been installed.

StarBridge allows you to connect up to 36 modules to a single StarBridge Radio and Power Pack. If you need additional modules, you can link additional StarBridge Radios and Power Packs to your setup using a single controller.

What are the advantages of using StarBridge over other wireless firing systems?

  • StarBridge uses 900Mhz, which is far more reliable than 2.4Ghz systems. 900Mhz can broadcast at 10 times the power, and in a frequency band with much less traffic. 900Mhz is able to pass signals through objects much better than 2.4Ghz, so it is far superior when radios don't have perfect line of sight.
  • StarBridge Radios are separate from modules. This allows modules to be placed in the best locations to connect to fireworks, and radios to be located in the best spots to communicate reliably.
  • Up to 36 modules can be powered from a single StarBridge Power Pack. Even when shooting a 1000+ cue show, only two batteries need to be charged afterwards: one in the controller and one in the StarBridge Power Pack.
  • Replacement batteries cost about $35 with a StarBridge Power Pack. Based on a 5-year replacement cycle, this works out to less than 20 cents per module per year for battery costs.
  • StarBridge Radios are housed in the same industrial quality hard aluminum case as the modules. They are waterproof, dirt proof, and highly fire resistant.
  • The StarBridge Kit allows monitoring of signal quality. You won't hope your system will work – you'll KNOW that your system will work.


ACEPyro.com Shop Now
StarBridge
StarBridge

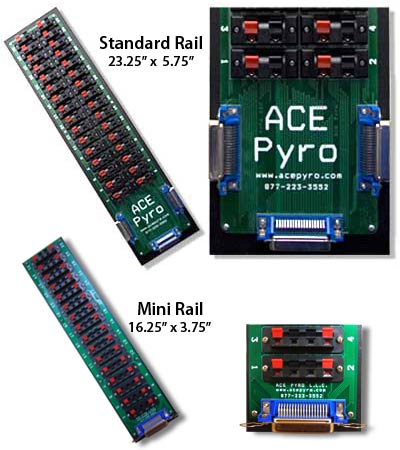

Firing System Rails

  • 32 electronic cues
  • 2 oz copper
  • Lightweight, compact construction
  • Parallel wiring capability to duplicate cues (with Standard Rail only)
  • Compatible with current/future generations of ACE Pyro & StarFire firing systems, as well as FireOne, FireLinx, Pyro Magic and many more.


Complete Digital Firing System
Package Deals now Available


ACEPyro.com Shop Now
Firing System Rails

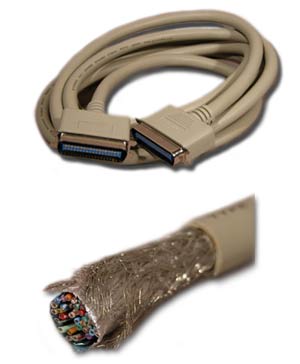

Heavy Duty Firing System Cables

  • Heavy Foil and Metal Braiding to protect the conductors from the harsh fireworks environment
  • 22 AWG Stranded Copper Wires
  • Heavy Duty Injection Molded Hoods to Protect Connectors
  • Compatible with current/future generations of ACE Pyro & StarFire firing systems, as well as FireOne, FireLinx, Pyro Magic and many more.


Complete Digital Firing System
Package Deals now Available


ACEPyro.com Shop Now
Firing System Cables

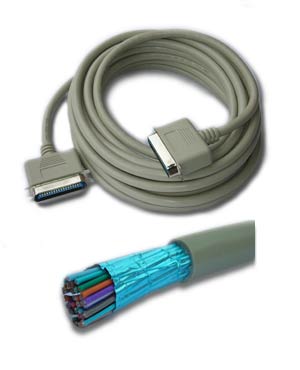

Medium Duty Firing System Cables

  • 24 AWG Stranded Copper Wires
  • Heavy Duty Injection Molded Hoods to Protect Connectors
  • Compatible with current/future generations of ACE Pyro & StarFire firing systems, as well as FireOne, FireLinx, Pyro Magic and many more.


Complete Digital Firing System
Package Deals now Available


ACEPyro.com Shop Now
Firing System Cables
